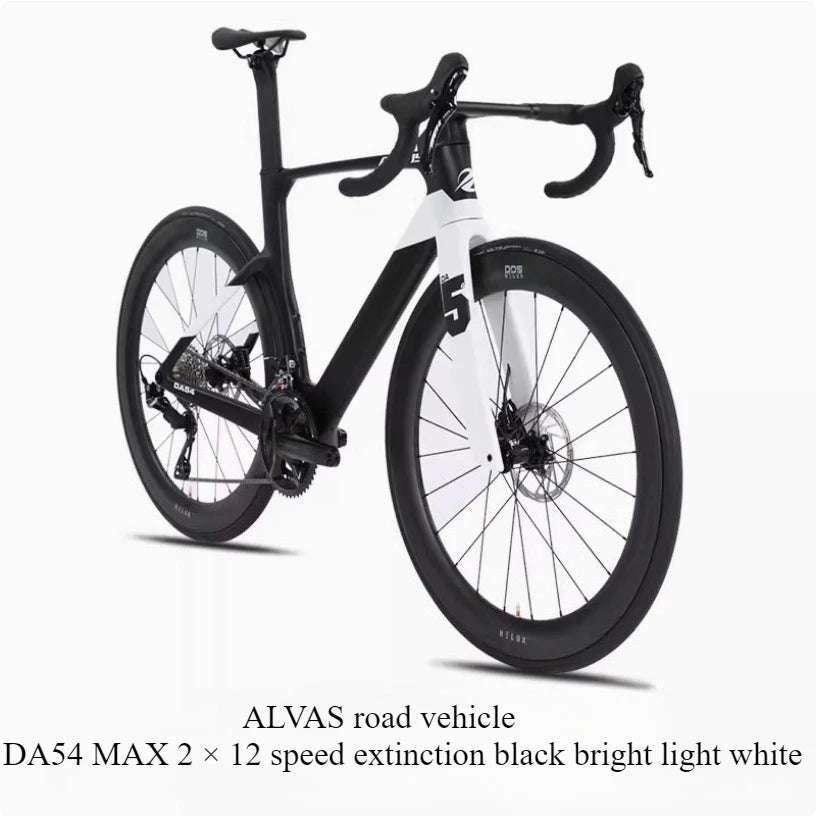

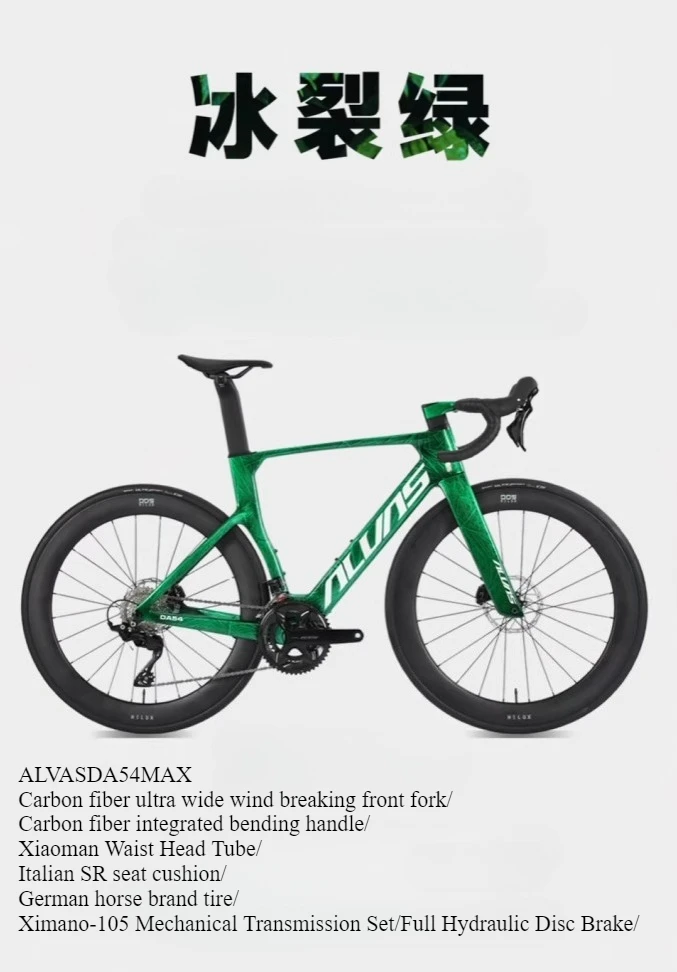

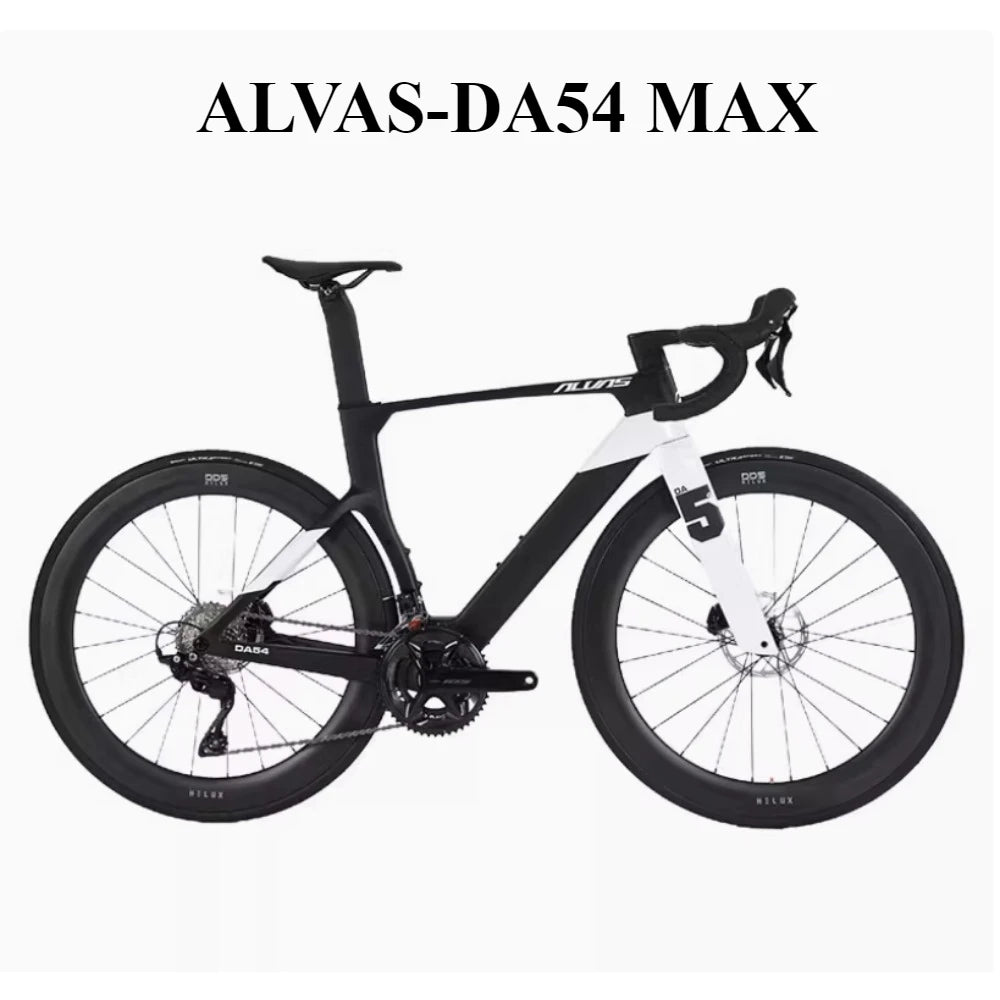

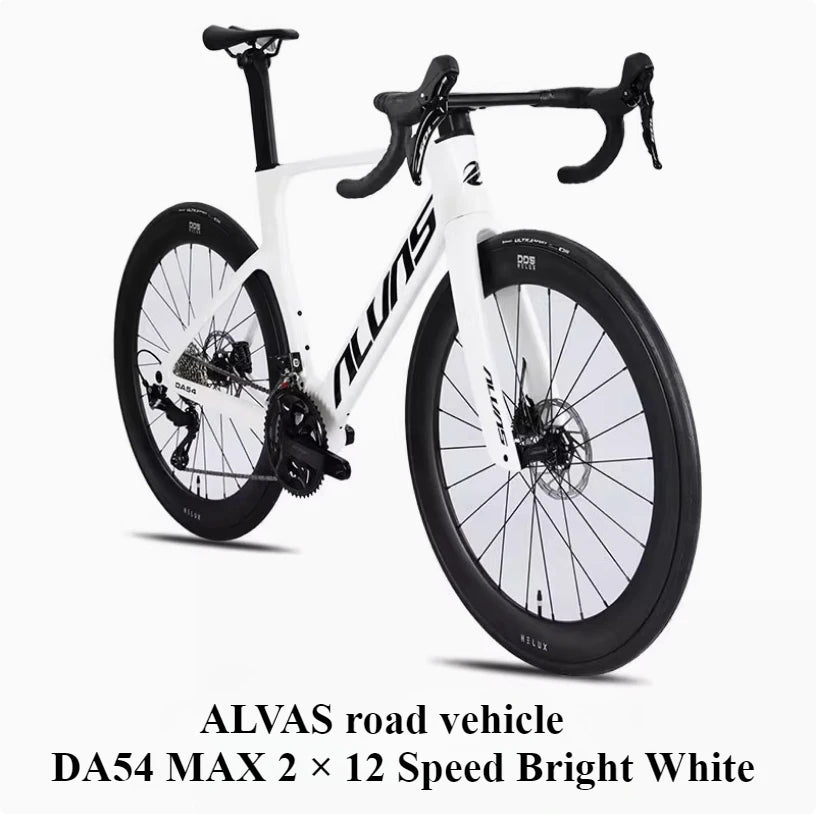

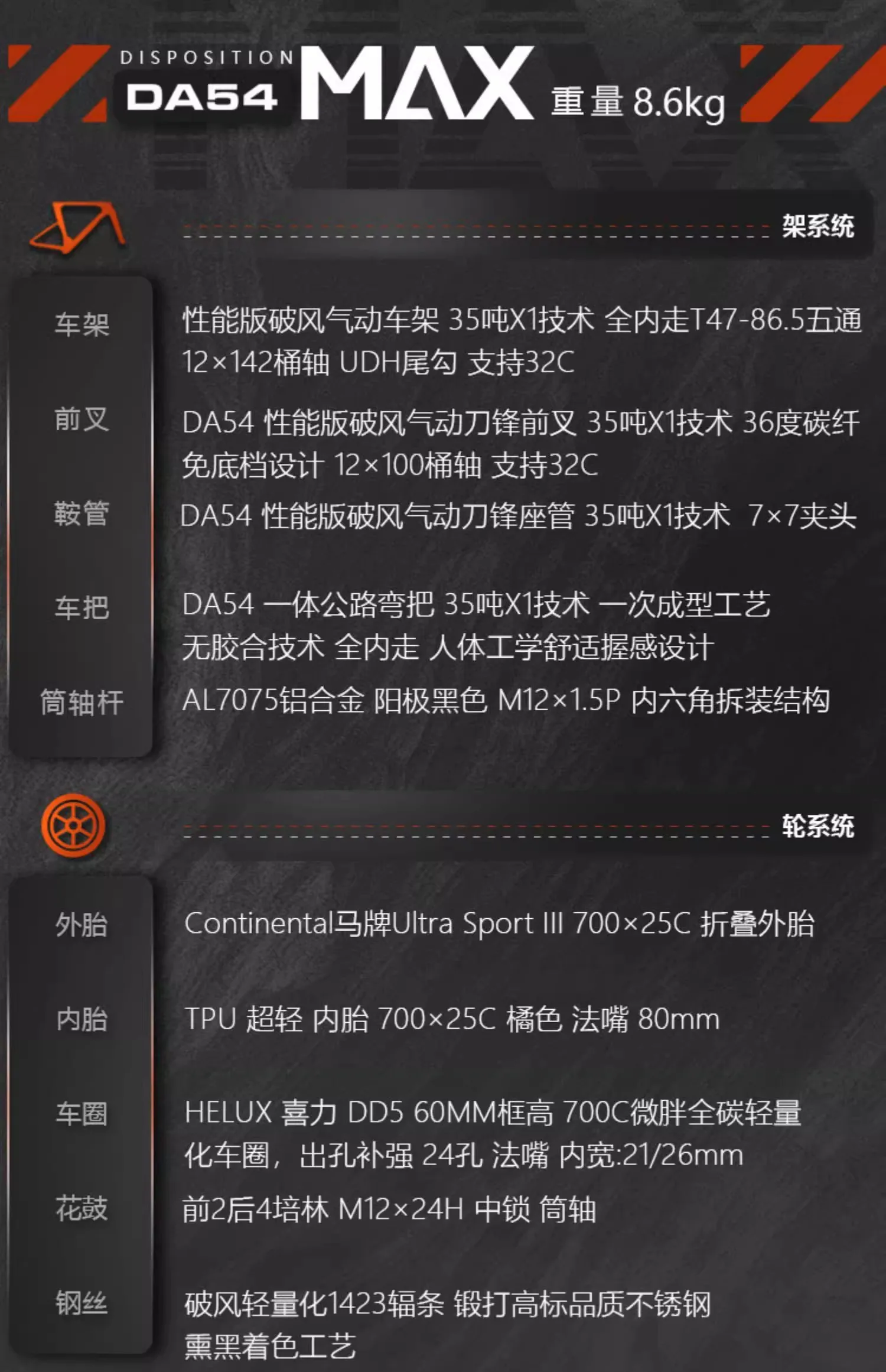

DA54-MAX
Weight: 8.6kg
rack system

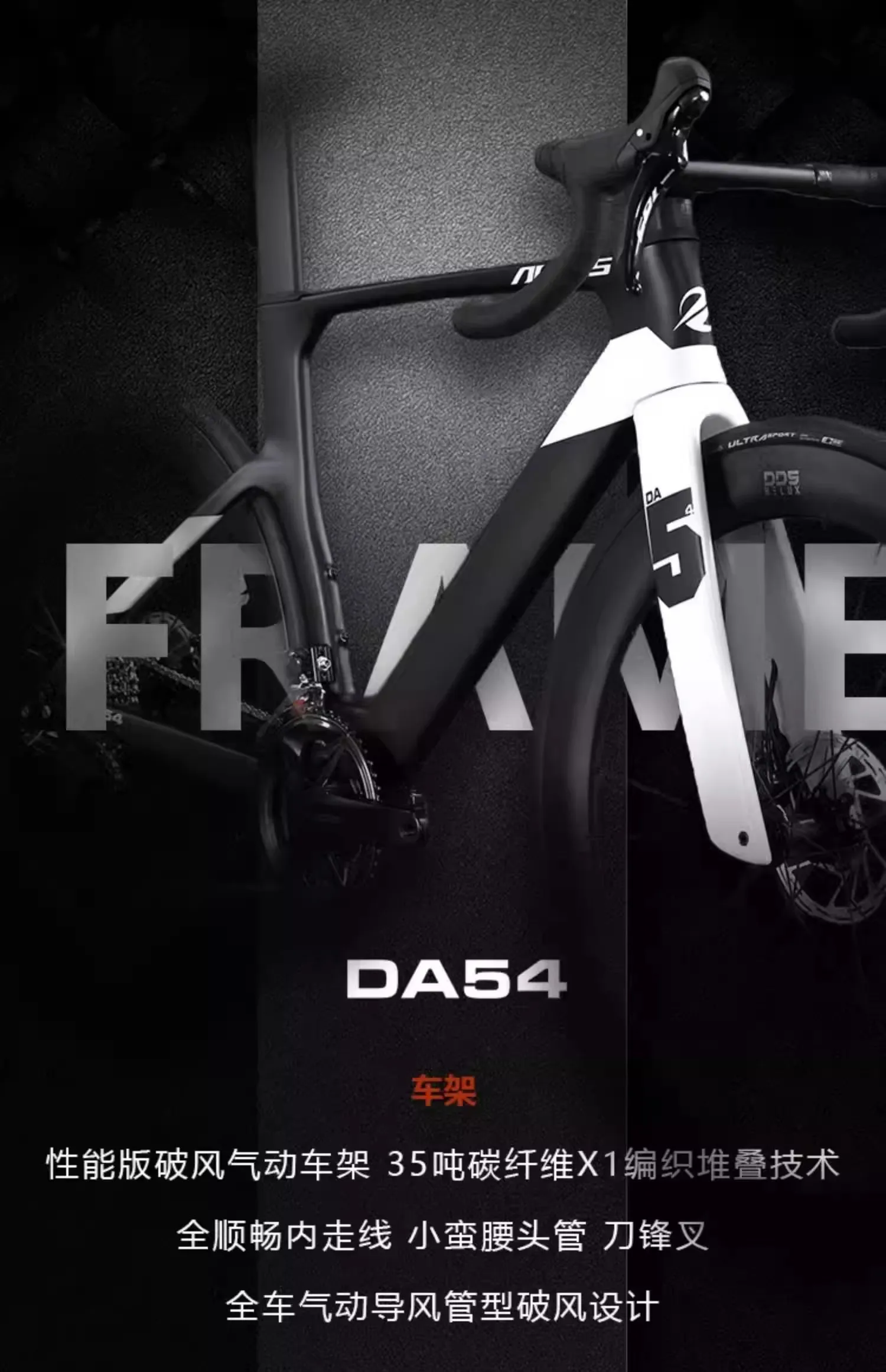

Frame: Performance version with air breaking and dynamic frame, 35 tons X1 technology, fully internal running T47-86.5 five way
12 × 142 bucket shaft UDH tail hook supports 32C

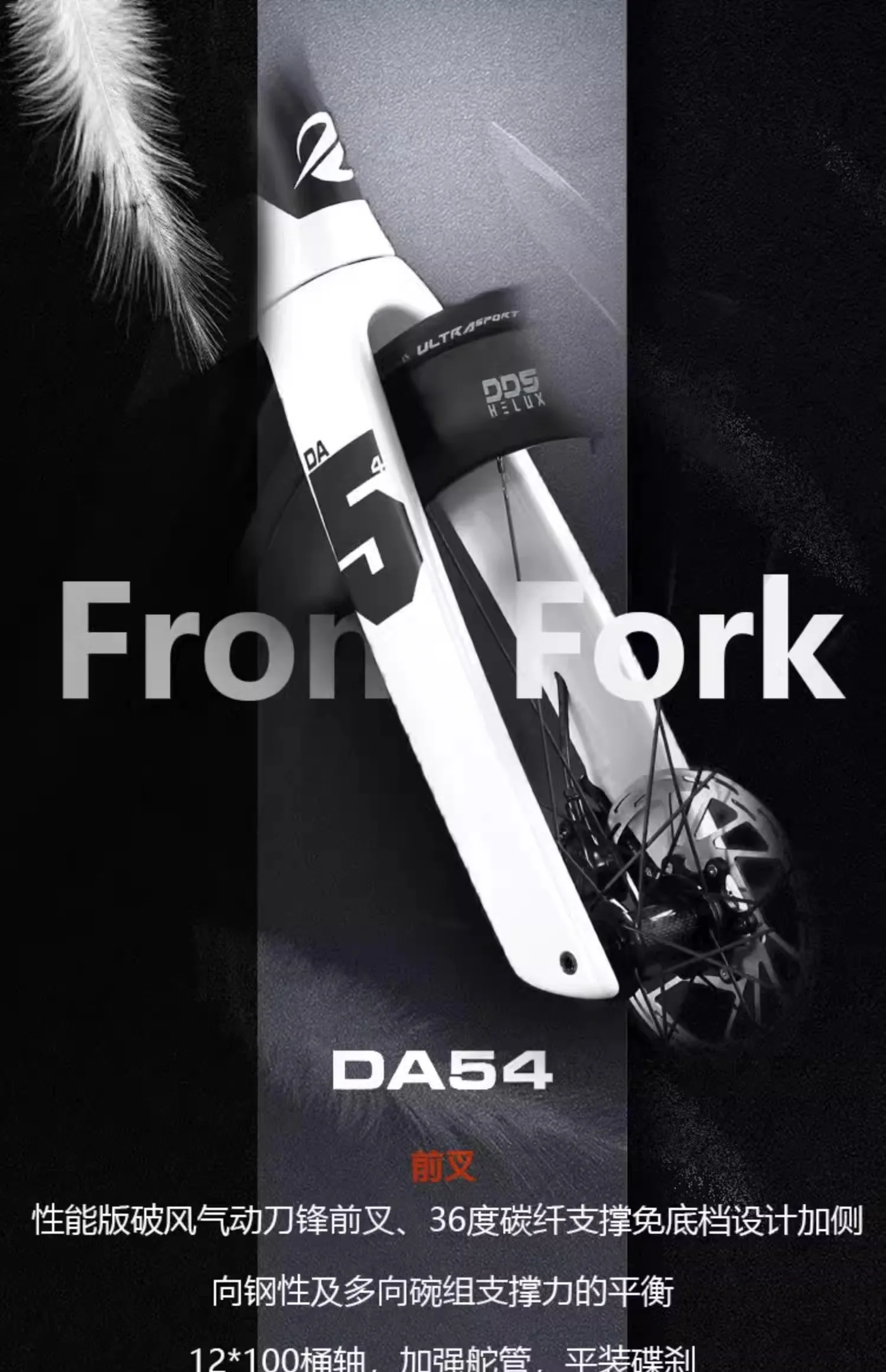

Front fork: DA54 Performance Edition Breaking Air Dynamic Blade Front fork 35 tons X1 technology 36 degree carbon fiber
Free bottom gear design 12 × 100 bucket shaft supports 32C

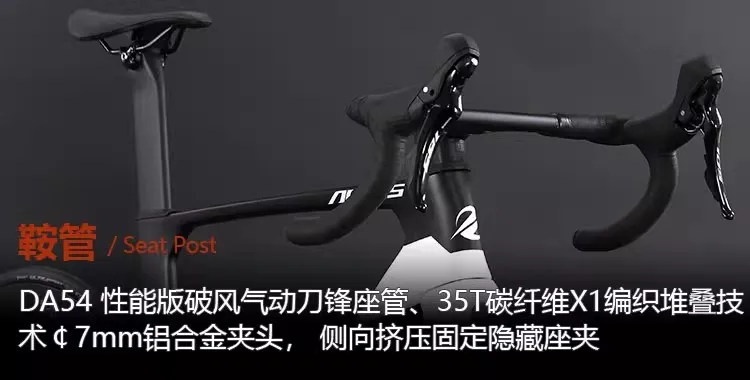

Saddle tube: DA54 Performance Edition Wind Breaking Pneumatic Blade Seat Tube 35 tons X1 Technology 7 × 7 Chuck

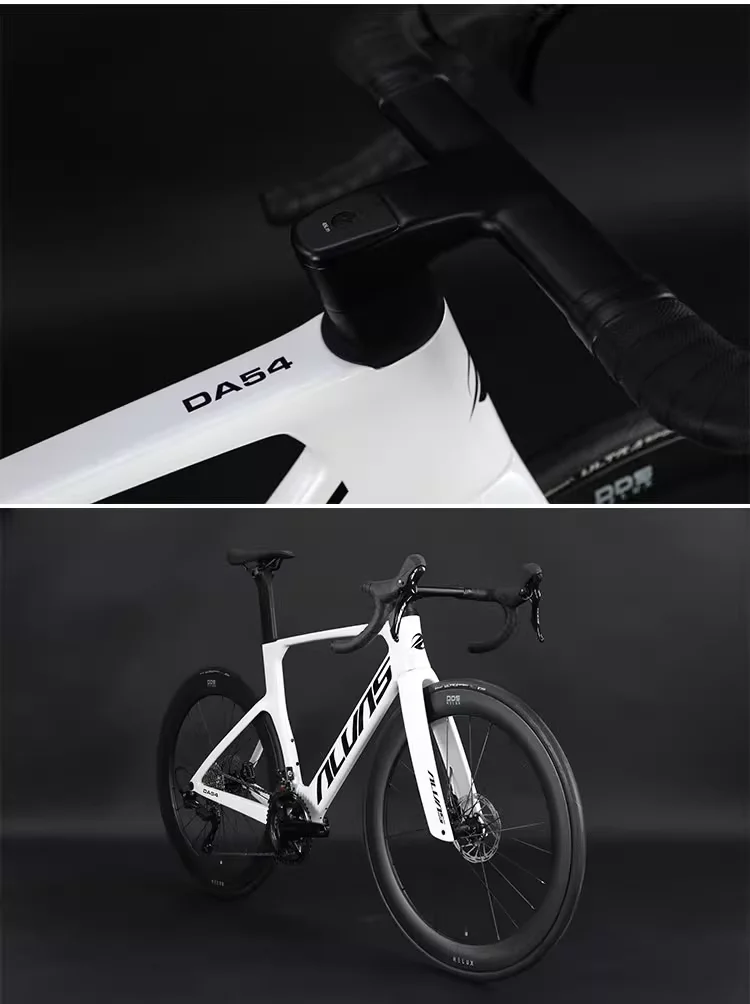

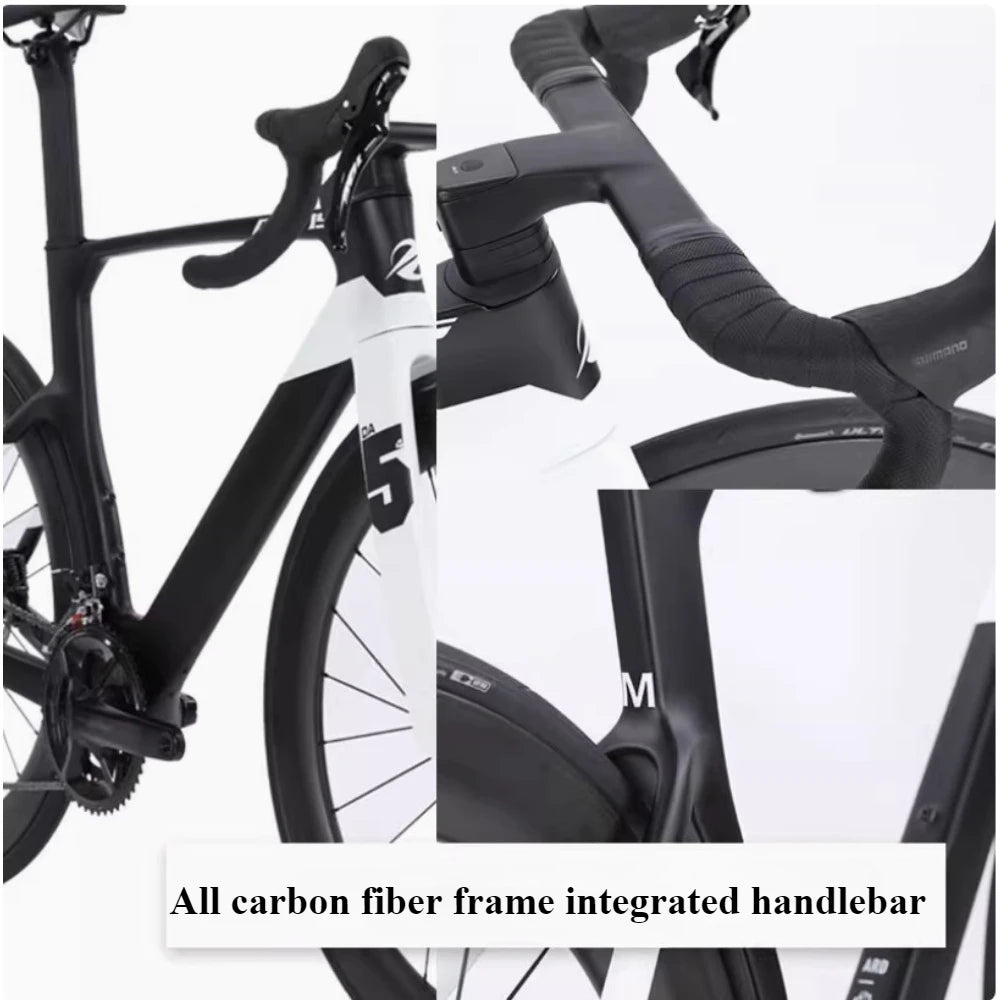

Handlebars: DA54 integrated highway bend handle 35 tons X1 technology one-time molding process
Non adhesive technology, fully internal ergonomic and comfortable grip design
Cylinder shaft: AL7075 aluminum alloy anode black M12 × 1.5P hexagonal disassembly structure
wheel system

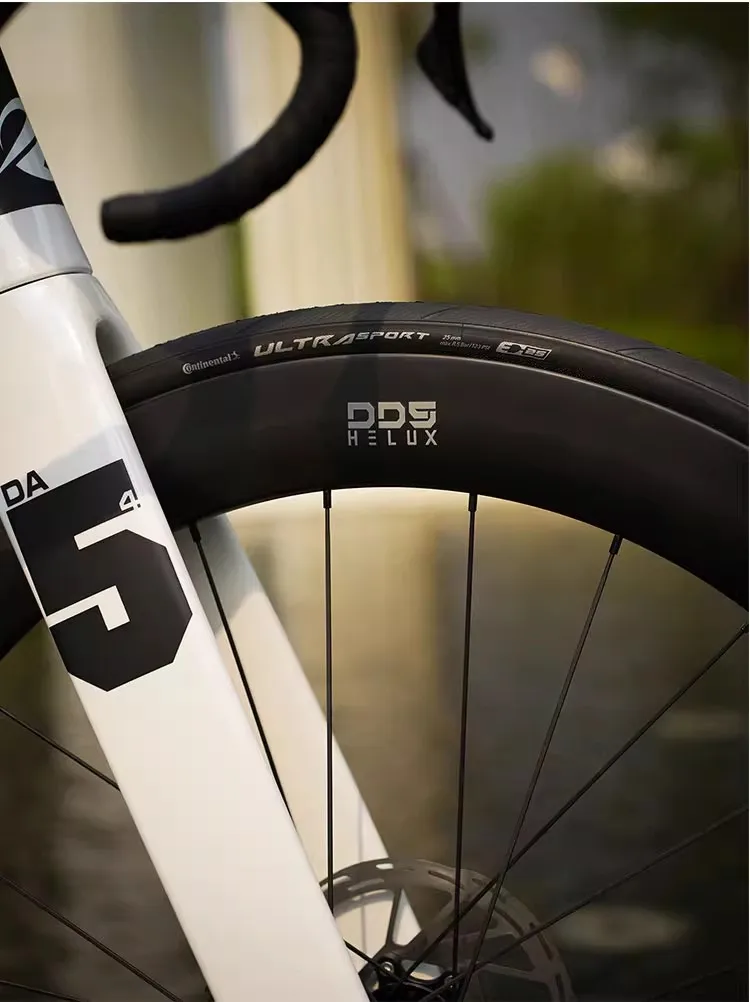

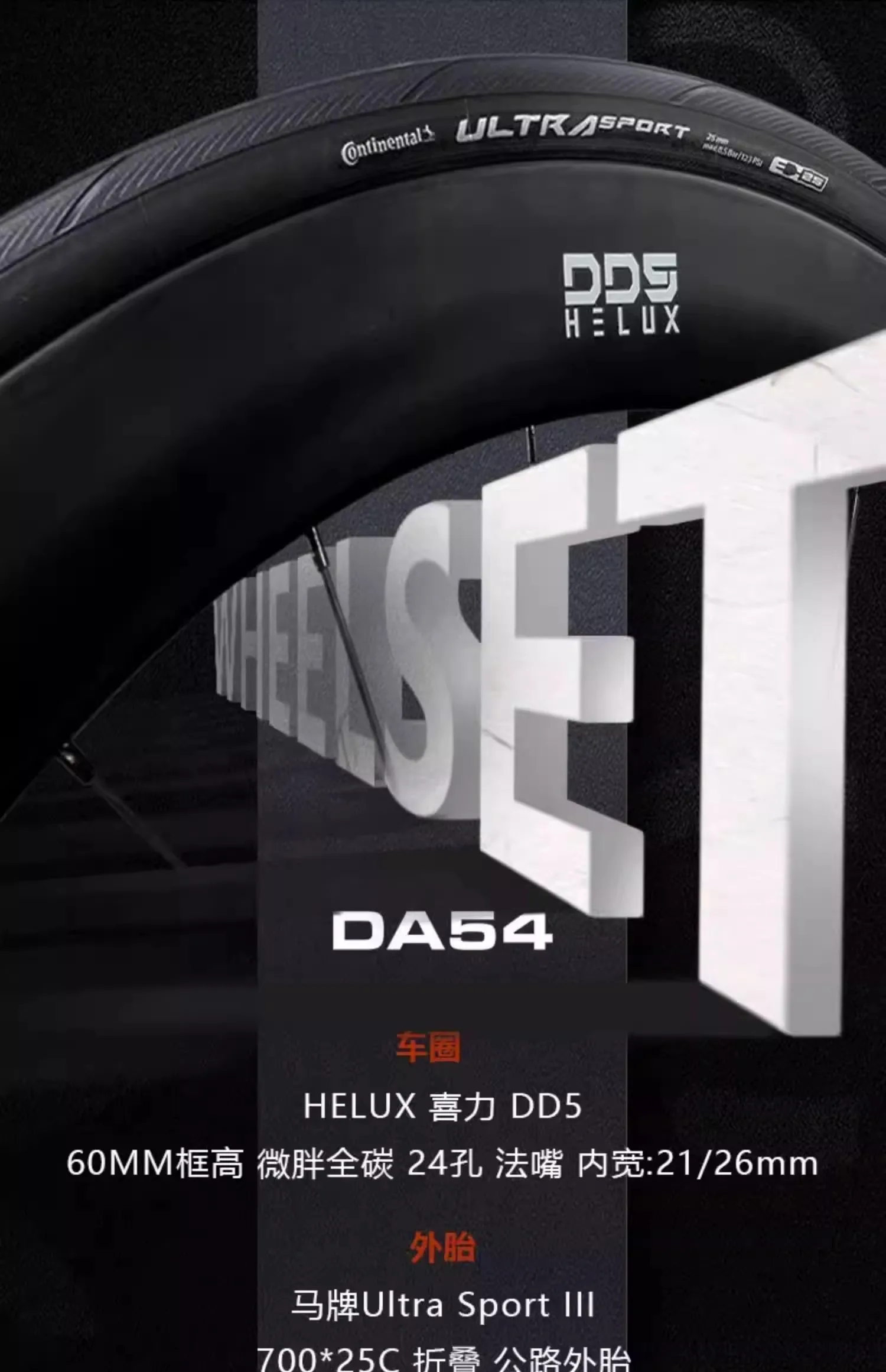

Outer tire: Continental UltraSportll700x25C folding outer tire
Inner tube: TPU ultra light inner tube 700 × 25C orange nozzle 80mm

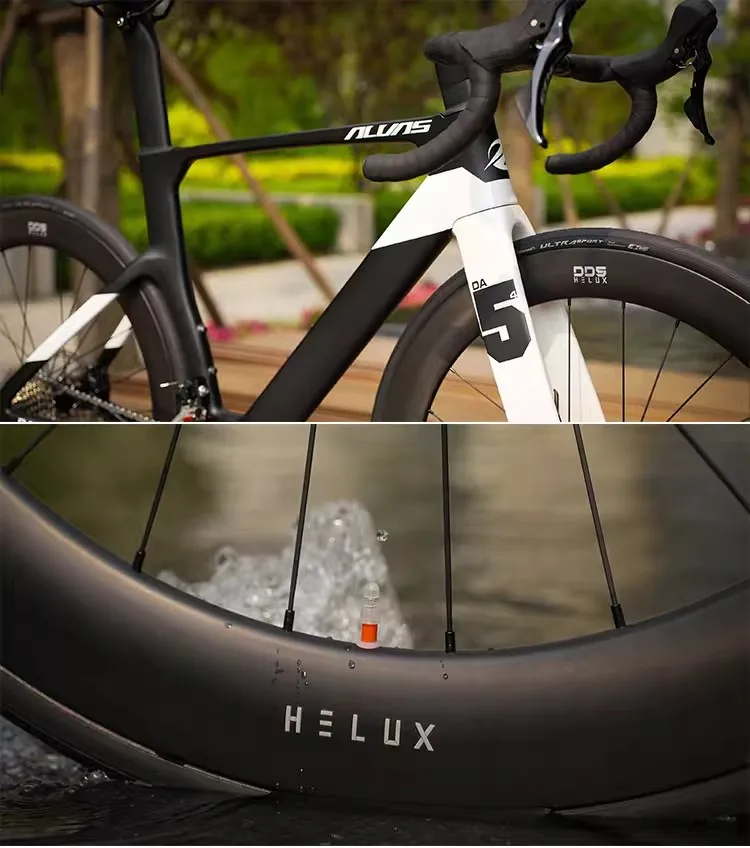

Car circle; HELUX Heineken DD560MM Frame Height 700C Slightly Fat All Carbon Lightweight
Car circle, hole reinforcement 24 hole nozzle inner width: 21/26mm
Flower drum: front 2, back 4 Peilin M12 × 24H middle lock cylinder shaft
Steel wire: Wind breaking lightweight 1423 spoke forged high-quality stainless steel
Smoked black coloring process

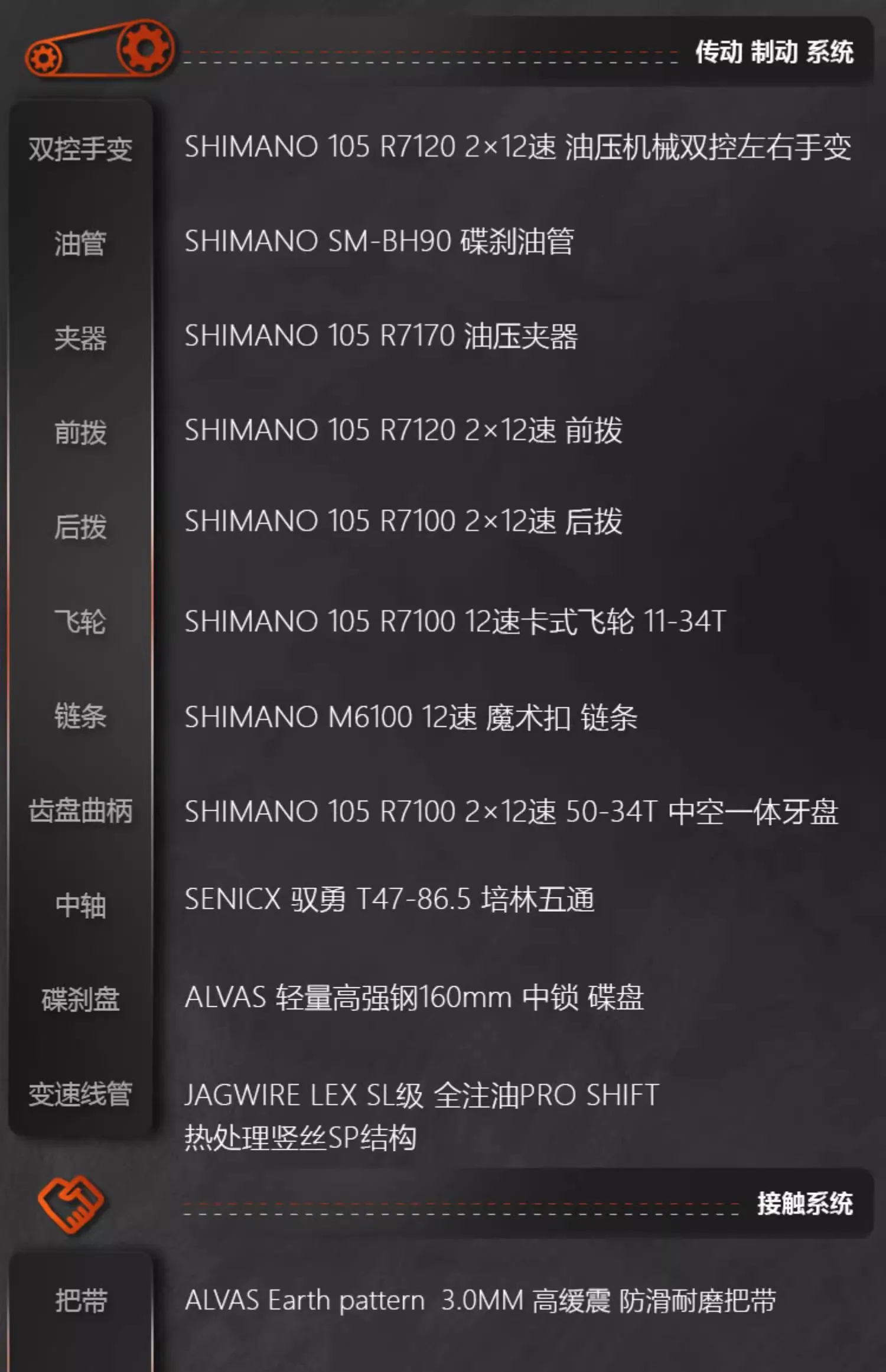

Transmission and braking system

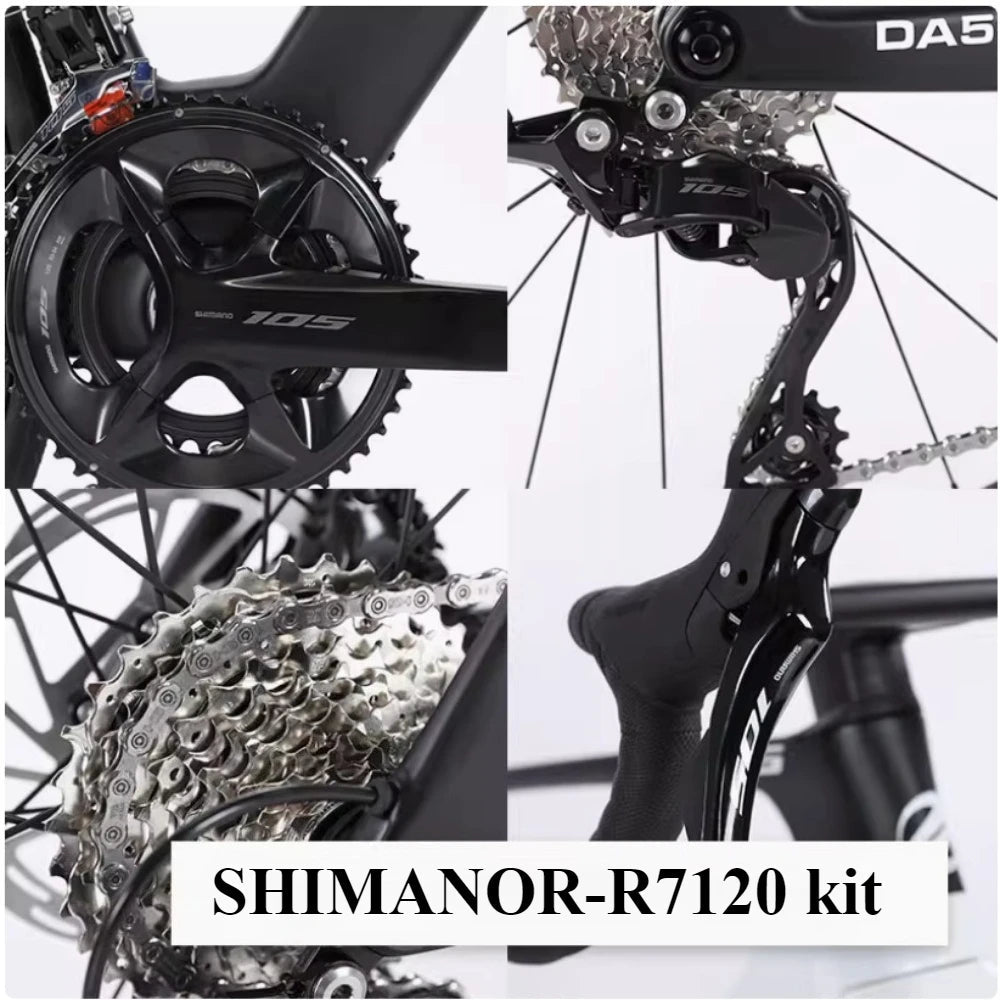

Dual Control Hand Transformer: SHIMANO105R71202 × 12 Speed Hydraulic Mechanical Dual Control Left and Right Hand Transformers
Oil pipe: SHIMANO SM-BH90 disc brake oil pipe
Clamp: SHIMANO 105/R7170 hydraulic clamp
Front dial: SHIMANO 105/R7120-2 × 12 speed front dial

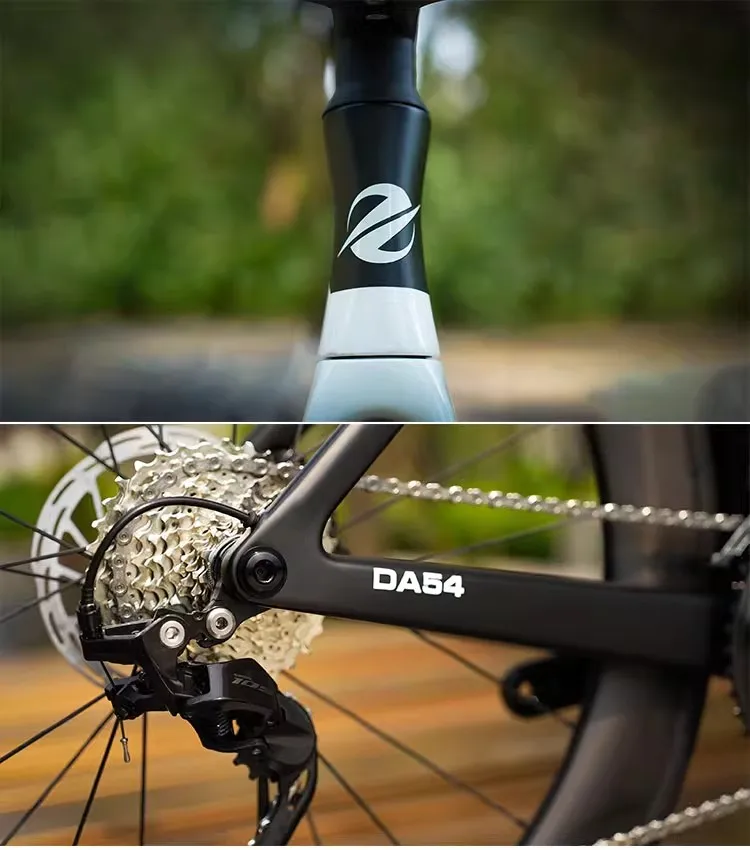

Rear dial: SHIMANO 105/R7100-2 × 12 speed rear dial
Flywheel: SHIMANO 105/R7100-12 Speed Card Flywheel 11-34T
Chain: SHIMANO M6100-12 Speed Magic Buckle Chain

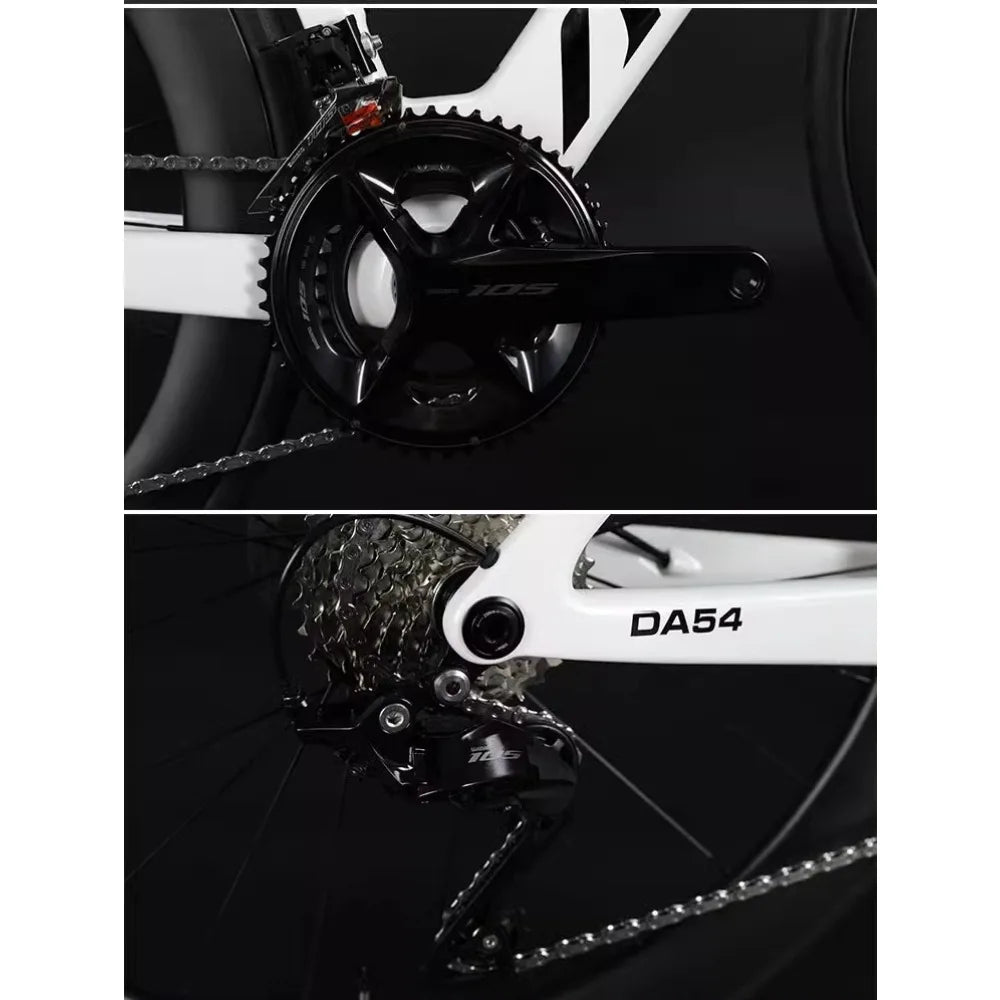

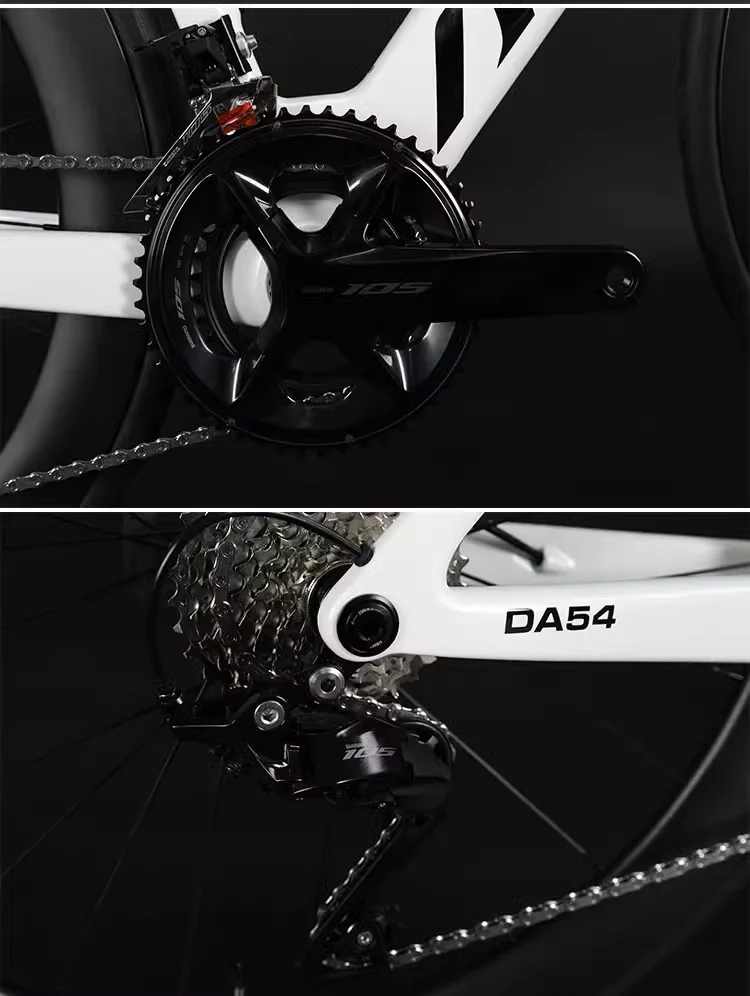

Gear disk crank: SHIMANO 105/R71002 × 12 speed 50-34T hollow integrated gear disk
Axis: SENICX Yuyong T47-86.5 Peilin Wutong
Disc brake disc: ALVAS lightweight high-strength steel 160mm middle lock disc
Transmission line tube: JAGWIRE LEX SL grade fully oiled PRO SHIFT
Heat treated vertical wire SP structure
contact system
Belt: ALVAS Earth pattern 3.0MM high shock resistant, slip resistant, wear-resistant handle belt

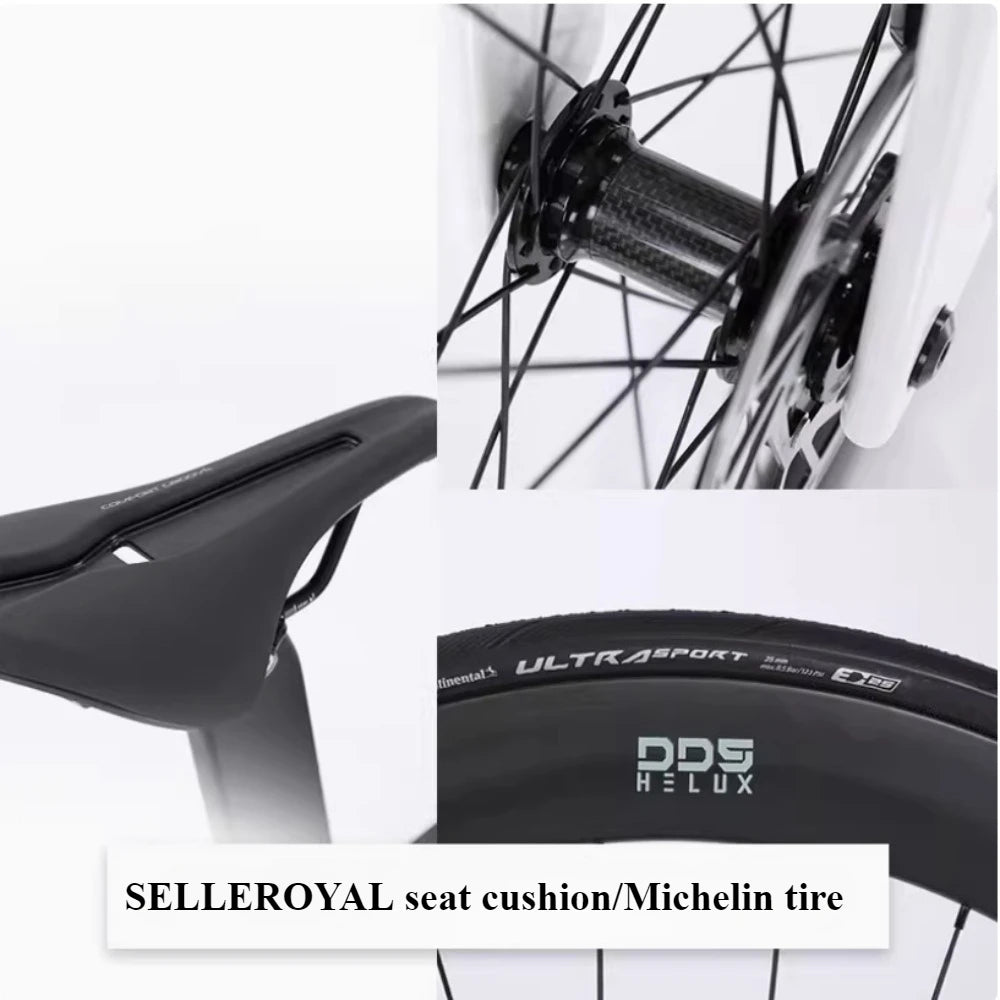

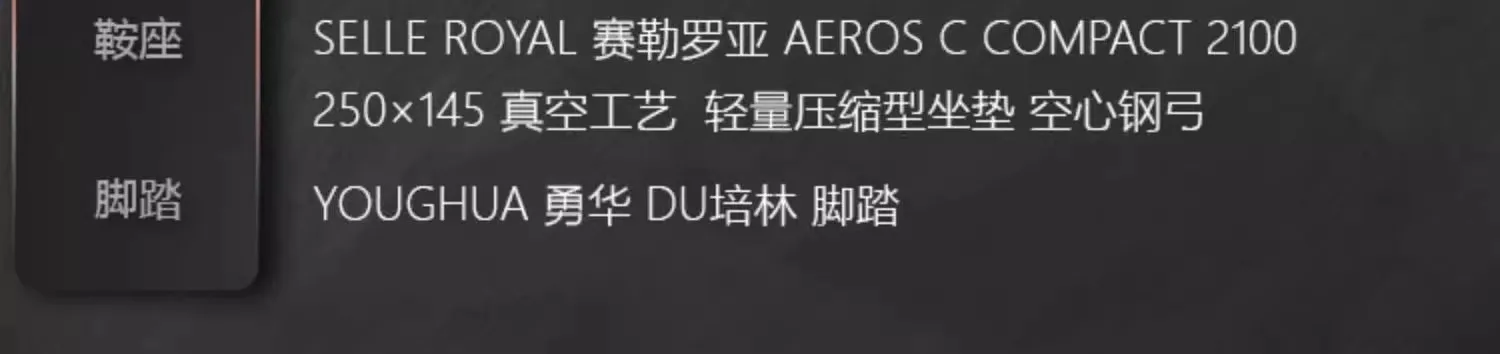

Saddle: SELLE ROYAL AEROS CCOMPACT 2100
250 × 145 vacuum process lightweight compression cushion hollow steel bow
Pedal: YOUGHUA DU Peilin Pedal
